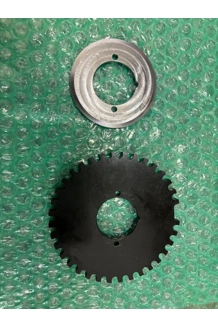

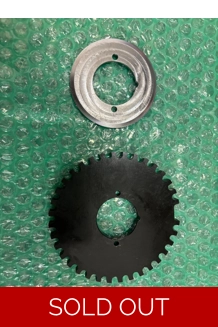

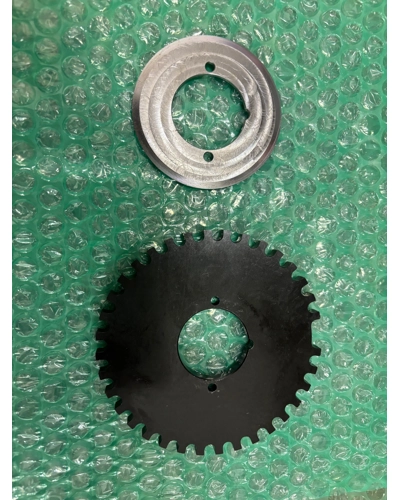

Hurley 3SGE 3SGTE 36-1 steel trigger wheel and belt guide chamfered washer kit
Product Code: 36-1TWK1
Hurley 3SGE 3SGTE 36-1 steel trigger wheel and belt guide chamfered washer kit
These are the parts that are fitted on our all our Toyota 3SGE F3 Monoposto race engines, an easy solution to fitting a crank position trigger wheel to suit aftermarket or stand alone ecu installations.
36-1 pattern steel trigger wheel to suit all Toyota 3SGE and 3SGE crankshafts
CNC machined
Diameter :100mm ,
Thickness :6mm
Material : EN24 steel , nitride finish
The trigger wheel has 2 x 4mm holes in which you can fasten locating dowels to your existing Toyota crankshaft timing belt pulley.
Chamfered steel belt guide washer
CNC machined
Material : EN24 steel
This washer is in place of the original pressed steel Toyota part and keeps the timing belt run away from the edges of the trigger wheel
Comes complete with drilling jig and 2 x locating dowels for easy installation .
